Suitable product size: φ15-120*H250mm;

Output: 3000-7000pcs/H;

Adjustable height of lifting frame: 800-1300mm;

Power: 2KW;

Mechanical size: length 2200* width 1050* height 1900mm;

Weight: 380KG;

1. Technical background: Under the phenomenon of difficult recruitment of blow molding enterprises, unstable product quality, customer complaints and returns, the Panguan team, after in-depth research and technical public relations, integrates the functions of vision (single camera), weighing machine and leak detection machine.

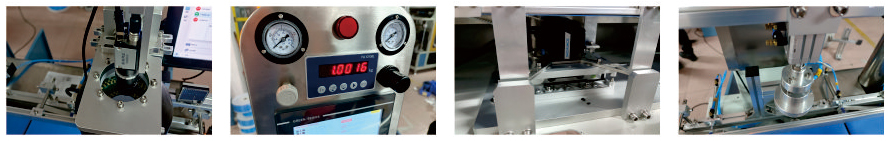

2, equipment function description: The bottles enter the vision machine (single camera) through the previous process, and solve the problems [1 bottle mouth raw edge, 2 bottle mouth missing material, 3 bottle mouth deformation, 4 bottle mouth blocked glue, 5 bottle shoulder more than 0.2mm black spots, 6 bottle closing line is obviously thick, 7 bottle mouth size abnormal], through the weighing machine, solve the problems [bottle weight is too light or too heavy], and then through the leak detection machine, Solve the problem 【 Identify whether the bottle is leaking inside 】

3, the advantages of the European vision software system are as follows: 1> easy to set tasks, 2> fast time to replace products, 3> stable system repeatability, 4> high precision;

4, weighing station source with Germany Siemens PLC high-precision weighing module and mature control system.

5, leakage station source with Europe's improved leakage detection technology: 1> Germany Siemens PLC control stability, 2> easy to change bottle type, 3> easy to adjust, 4> high leak detection accuracy.
